Who are we to stand in the way of progress? Introducing the all new

OSR-X

With over 1.5" added height compared to the standard OSR we know and love, this opens up several possibilities.

1. Run custom 14" shocks without a body lift
2. Run 10-12" shocks and increase ground clearance over the standard OSR (using OSR spec shocks)
3. Look cool doing it

Move the shocks where they should've been in the first place, to the outside of the frame. The FGP "OSR-X" allows for longer shocks, makes shock install/removal a breeze, and greatly improves the efficiency and performance of your shocks.

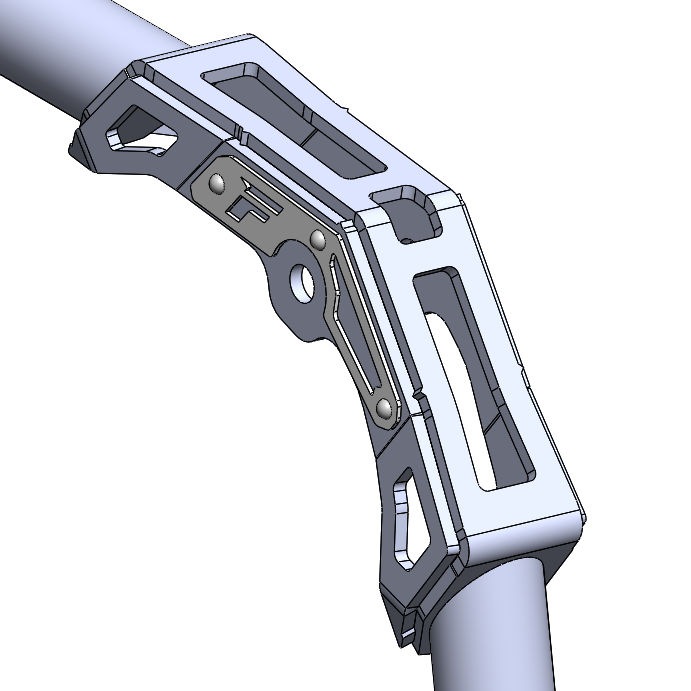

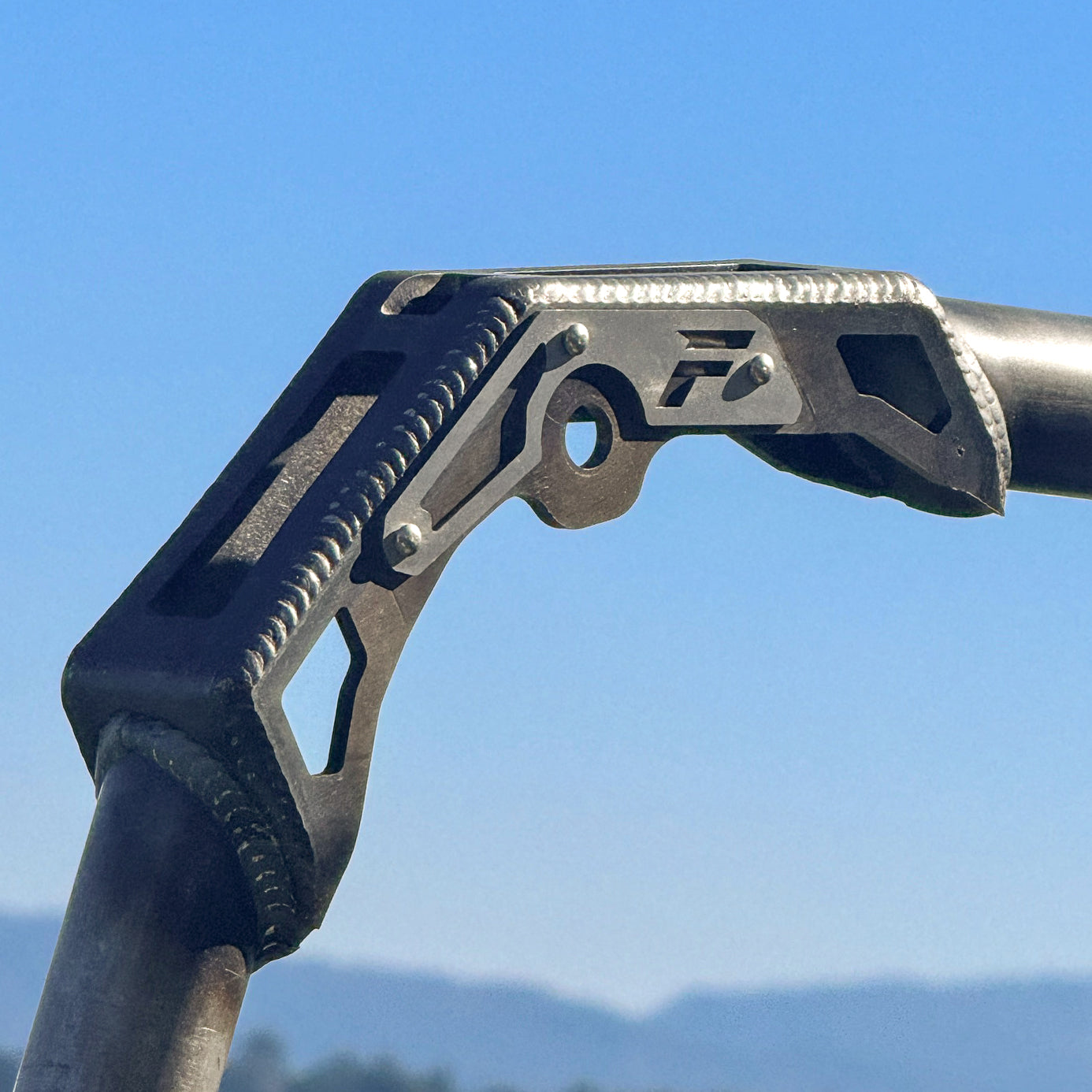

This kit utilizes fishplate gusset frame plates to add load bearing strength at the mounting points, as well as radiused upper mounts to provide more weld surface and strength.

Designed to be compatible with 10-14" shocks. Custom specks often required.

For 2.0 shocks, a minimum 3.5” wheel backspacing is recommended for tire clearance. Example: if you have 4.5” BS wheels, you will need 1” spacers to bring it down to 3.5”. 2.5in shocks require minimum 3" backspace. Results may vary.

DISCLAIMERS:

• Remote resi shocks will require a 45 to 90 degree fitting to clear shock mount pocket. Custom spec resi hose/fittings recommended.
• Custom specked "OSR" shocks, same as the standard OSR, will be required to maximize the full benefits of the OSRX
• (Option A & B) Frame notching will be required for 2.5" shocks.

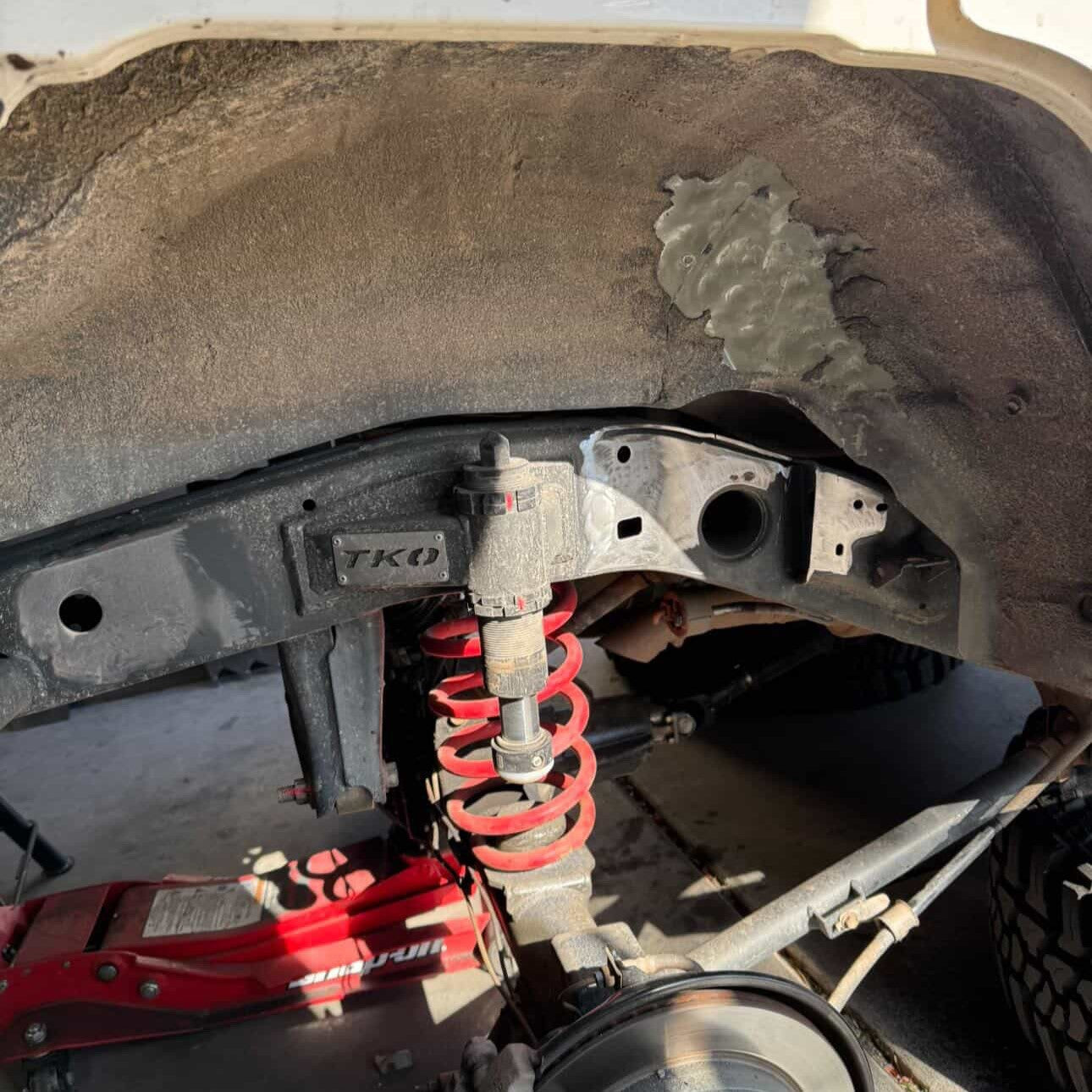

• (Option C) Protrusion in wheel well sheet metal near upper mount will need hammering for hoop clearance. Proceed at own risk. (Example shown in last photo)
• 12 Inch shocks are the safe limitation for stock rear geometry. 14" shocks or longer can only be safely used AFTER you have upgraded your rear geometry (with the FGP 3-Link for example). Upgrading the rear arms alone does NOT count as upgrading the rear geometry.

What's included:

• Fully assembled/welded OSR
• Lower shock mount tabs
• Flanged grade 8 hardware

Options:

• Add reservoir mounts & hardware.
• Add frame notch plates (for clearing 2.5" diameter shocks) (Not required for Option C)

**INSTALL INSTRUCTIONS**

Current Estimated Lead Time: 6-10 weeks

Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
