9 inch Rear APEX Short Truss
Stronger Design, Lighter Weight, Easier Install
A NEW ERA HAS BEGUN WITH THE ARRIVAL OF THE APEX TRUSS! Artec Industries is proud to announce the next generation of PATENT PENDING axle trusses. This series of trusses not only builds on our experience as the world leader in axle truss design, it brings it to a whole new level of cost savings, strength, weight savings, simplicity of installation, precision fitment, and complete axle protection never before seen in the industry.

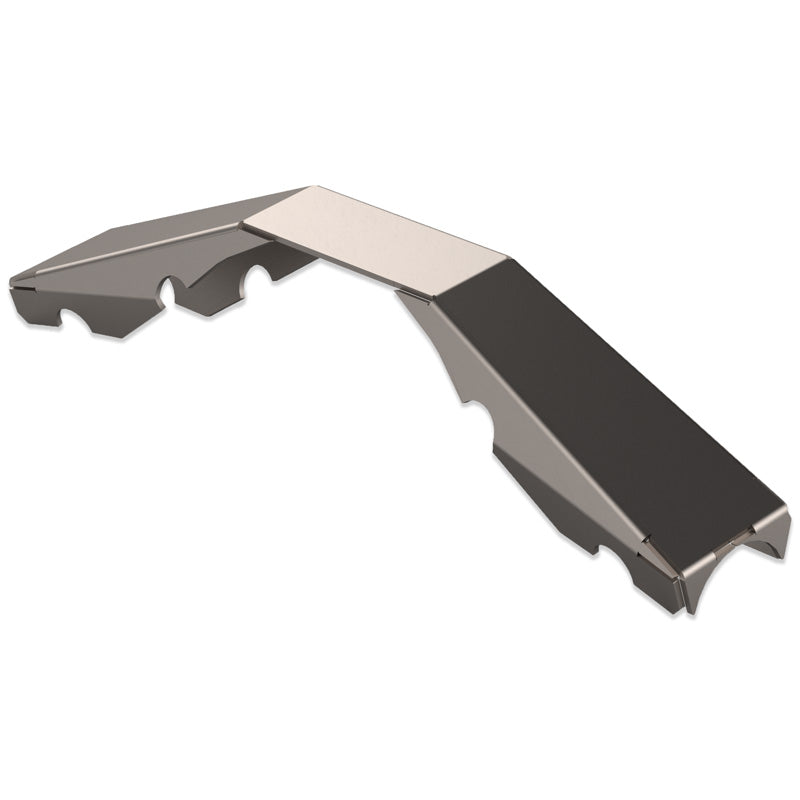

The key feature that sets the APEX truss apart is its unique peaked shape top which provides extra rigidity to the whole truss while allowing both a reduction in weight (vs using a thicker material top) and eliminating long weld seams. Previous version with long weld seams which can be lead to extra weld warping of the axle, longer install times and can be inconsistent. Without long seams to weld, now you drop the truss directly on to the axle and weld it to the axle faster.

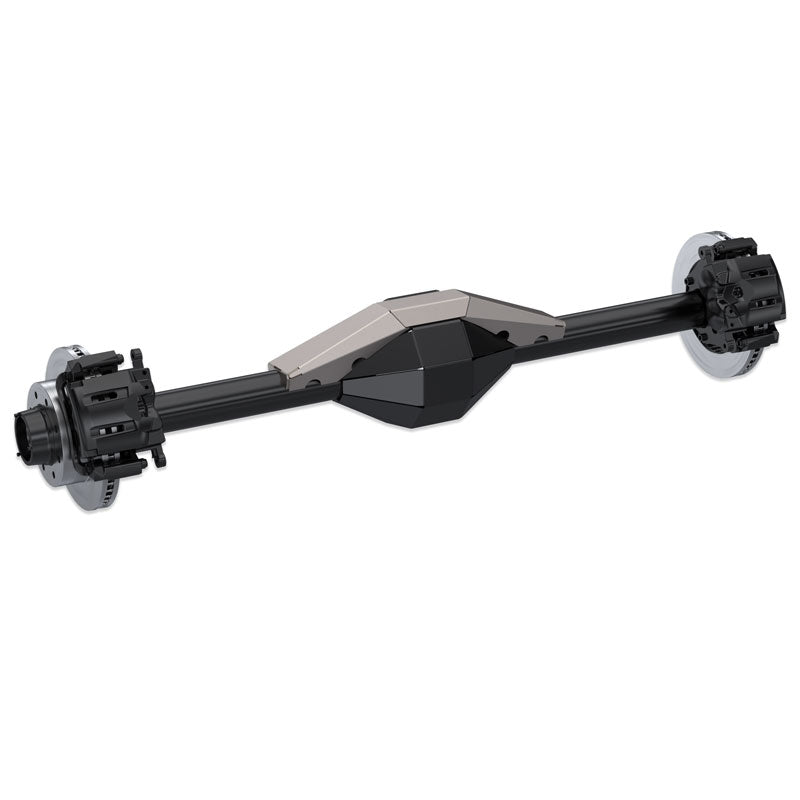

This Truss is the heart of the APEX 1 ton swap kits for JK, JL, and JT and allows not improves rigidity and strength to the axle around the differential, it allows for mounting upper links over the differential if desired.
This truss fits SPIDERTRAX axle housings with a centered differential. Overall length on this truss is 27.29 inches. May fit other fabricated 9 inch housing but not guaranteed. Install on other 9 inch housings at your own risk.
NOTE: This truss is very form fitting to the contours of the casting. Due to variances in axles of this axle over the years, some trimming may be necessary on the truss and non-essential parts of the casting.
Features include:
|
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
*Some grinding and fitment may be required when installing this item. Every axle varies slightly and some fabrication may be required.
