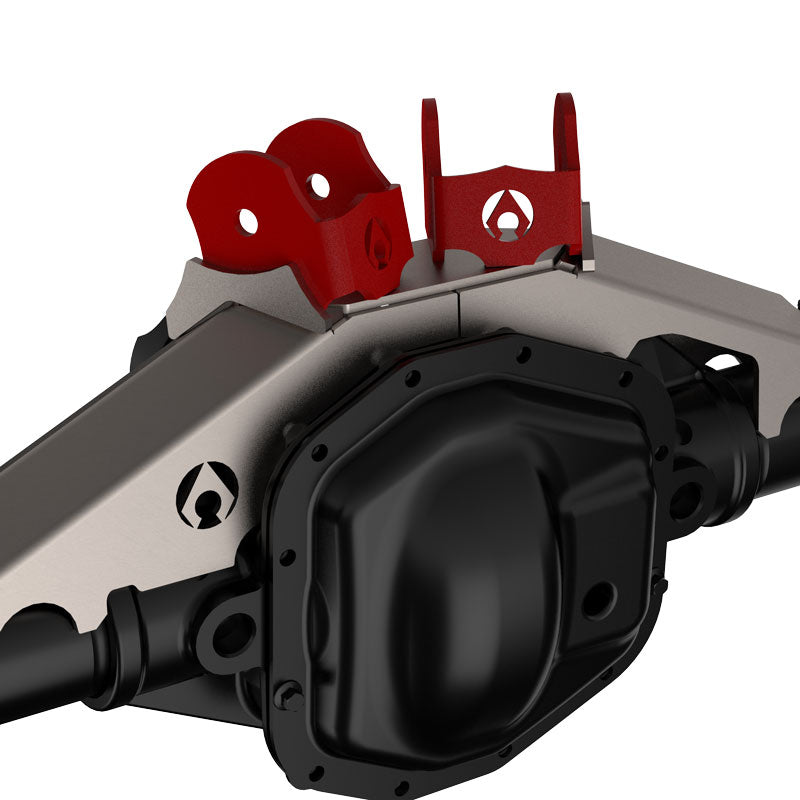

These Link Mounts are designed to mount on a flat surface such as a truss. With the optional APEX Gusset, these will fit perfectly on the new APEX rear Trusses. The APEX gussets allows for your UCA brackets to be mounted at various angles and widths so you can build your 4-link the way it needs to be and be assured the gusset will allow full contact with the bracket and truss.

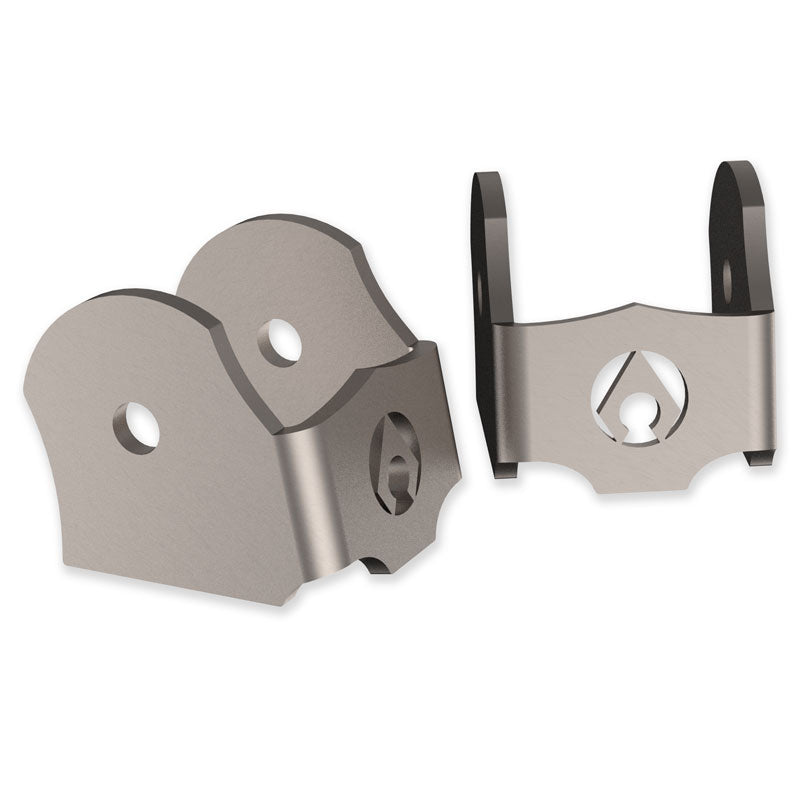

These brackets are CNC cut and bent from 1/4" thick mild steel. The bend strengthens the mount so no additional reinforcement is needed. Set at 2.63" inner widths for the most common joints. Hole size 9/16" but you can drill it out to up 1.0" if you'd like. CHOOSE FROM 2 BRACKETS, a SINGLE BRACKET, or PAIR OF BRACKETS WITH APEX GUSSETS.
