Axle Link Mounts

These mounts have been specially designed to withstand a serious beating and can be utilized in your custom front/rear 3 or 4 link suspension.

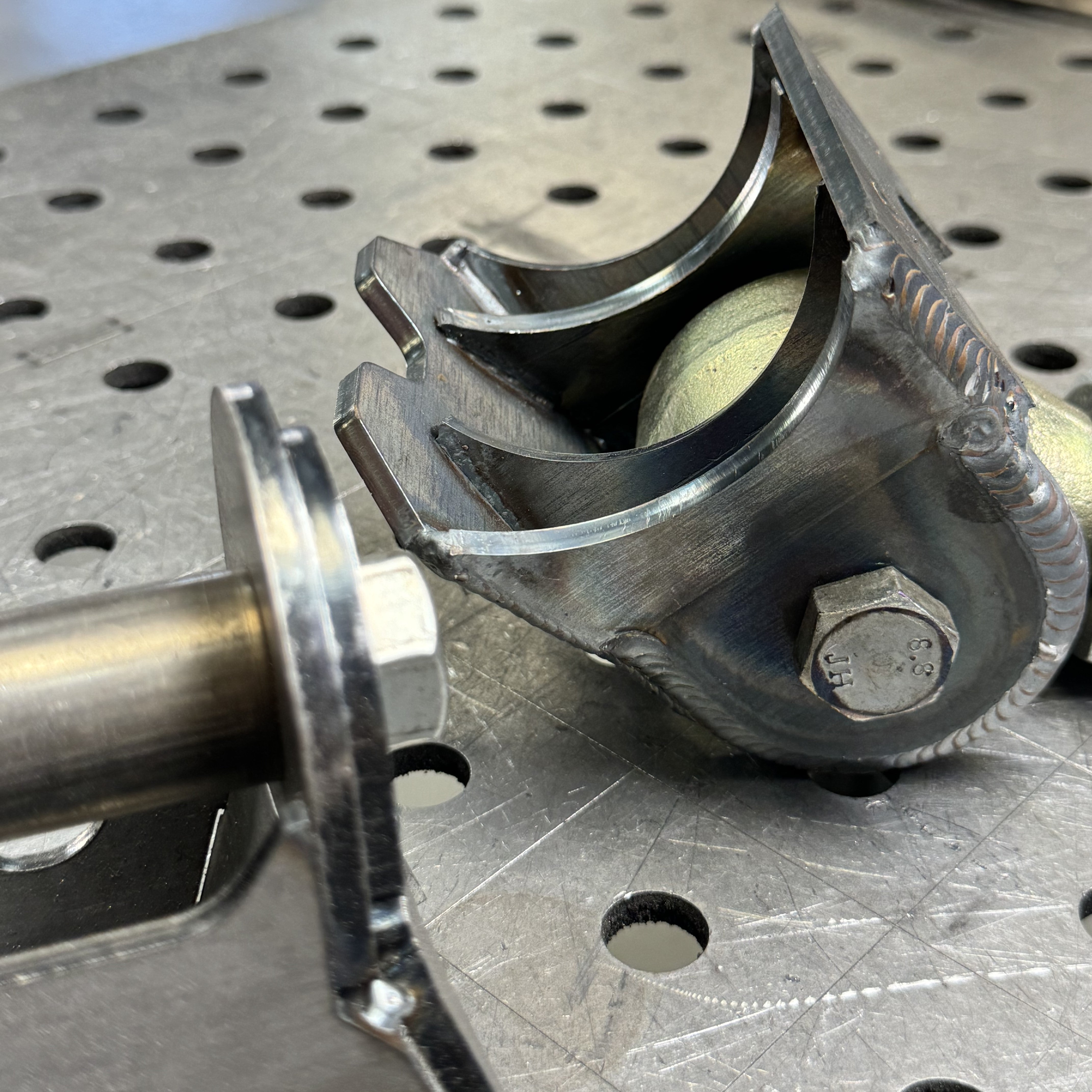

These lowers feature upper and lower plates to provide a full wrap around welding surface to the axle housing, as well as offset inner plates for even more weld surface to spread the load on the housing.

Made to fit average 1.25" Johnny Joint/Heim mounting widths. Available in two sizes.

Includes:

• (2) Fully assembled/welded lower link mounts

Details:

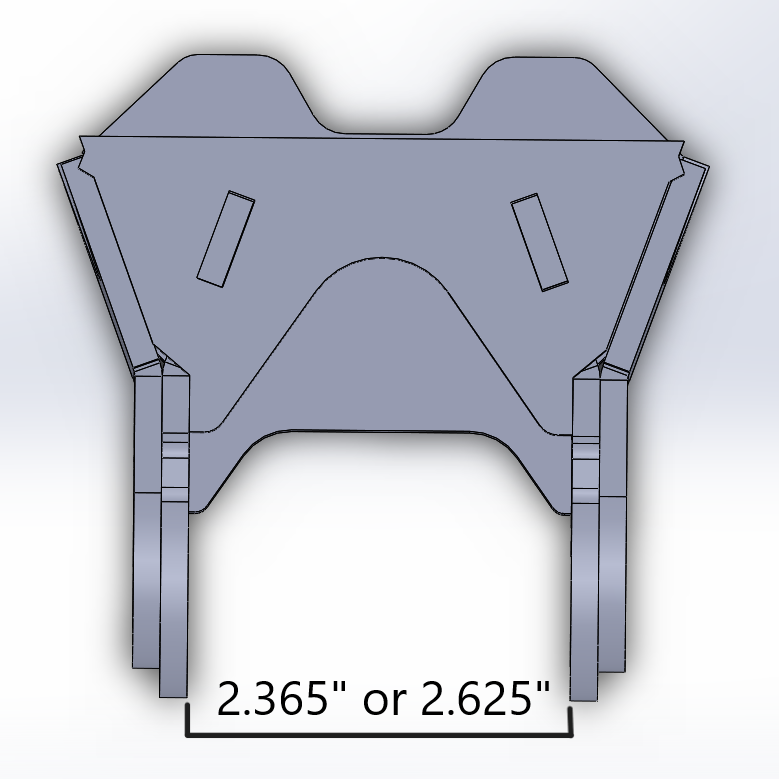

• Available in 2.365" and 2.625" inner width

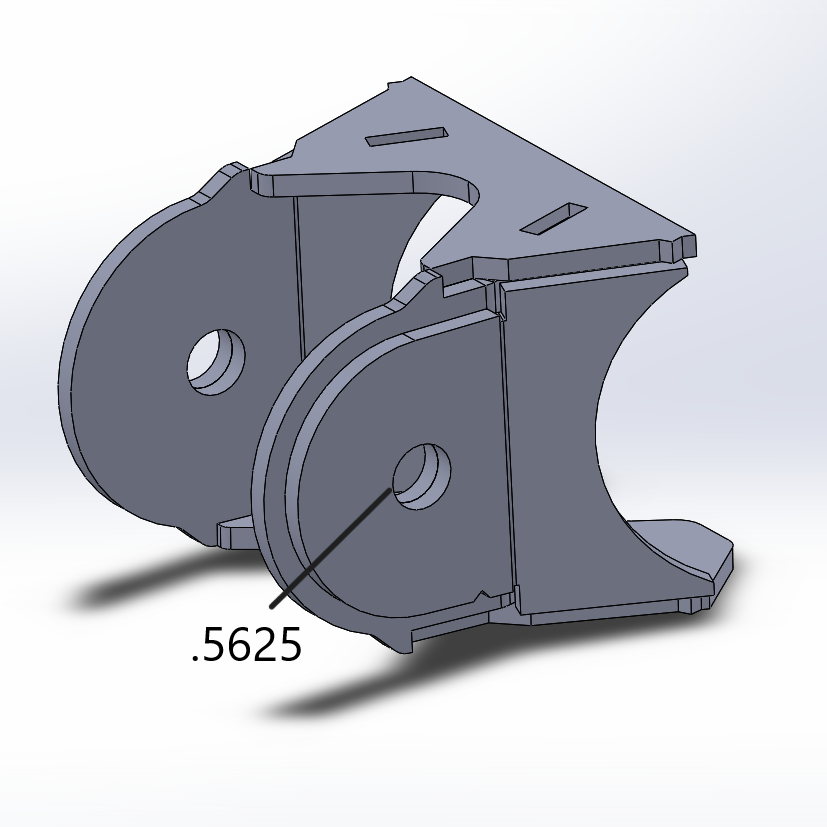

• 9/16" (.5625) bolt holes (drilling required for 5/8" bolts)
• Fits 3" axle tubes (Can fit larger housings if modified with grinder)

Current Estimated Lead Time: 3-5 weeks

Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
