THIS ITEM IS WINCH ONLY

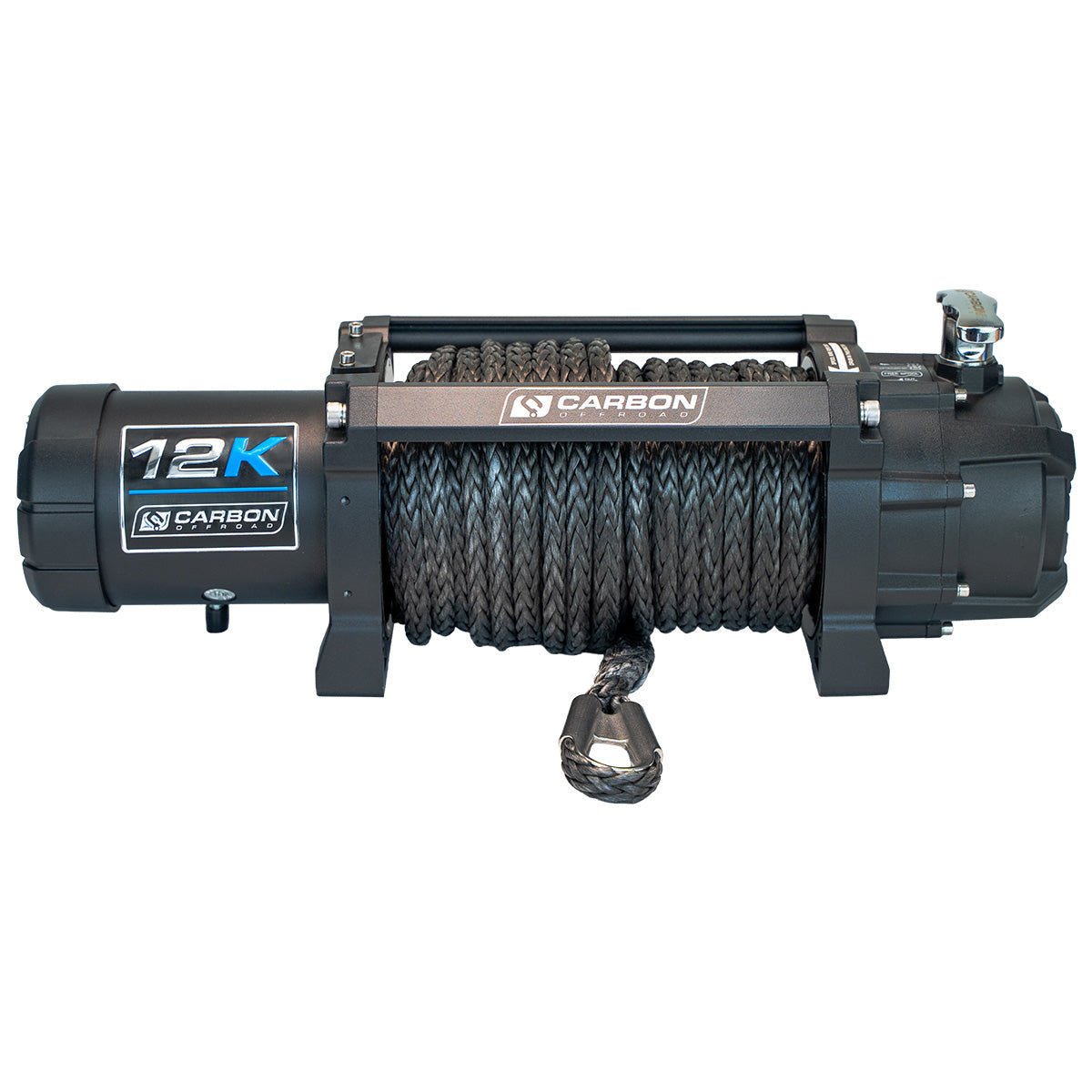

The Carbon 12K is a lightweight, high-performance 12000lb winch designed to handle tough off-road conditions.
Engineered in Australia and refined through real-world use.
With a powerful 6HP motor, IP68 waterproof rating, and a durable triple planetary gearbox, it’s built for consistent pulling power through mud, sand, and steep terrain.
The control box offers flexible mounting options, and the winch is compatible with multi-fit fairleads suited to most bars. Backed by a lifetime mechanical warranty and 5-year electrical and water ingress cover, the Carbon 12K Winch delivers long-term value with no compromises.
River crossings and mud runs are stress free, this winch features a breathable membrane style motor breather for heat expansion and contraction. The Carbon Winch supports operation via wired or wireless remote control (sold separately), allowing recovery to be carried out from a safe position.
IP68 meaning - Ingress Protection
6 - Can withstand dust and dirt
8 - Can be submerged under freshwater for 30 minutes up to 1.5m depth, but not during operation.
The Carbon Winch is a proven performer with year on year sales growth and countless recoveries from the mud bogs of Tassie to the river crossings of the Cape. For peace of mind it's backed here in Australia by a class leading 5 year water ingress & electrical warranty and a lifetime geartrain warranty. We also stock a warehouse of replacement parts here in Australia to support ongoing service and maintenance.
If you're capable with a few basic tools, installing a Carbon Winch is straightforward with standard winch mounting procedures. An isolator switch, cabling, fairlead, hook, and control accessories are not included and must be sourced separately if required.
Mounting the control box is flexible with a multi-fit system that allows installation on the winch, above the winch drum or motor, or remotely on the vehicle using an appropriate bracket. Weight is a serious consideration with all 4WD accessories, and the Carbon Winch is designed to minimise front-end load, weighing only 45.63lb.
Carbon Winches 12K Winch is a 12000lb line pull winch designed to meet the demands of off-road and utility use in Australian conditions, delivering reliable performance and service life when correctly installed.
Combatable with Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
