JK 1 TON - Rear 14 bolt Drum to Disc Conversion with ABS Kit
Maintain ABS in your Jeep JK Wrangler ('07-'17) with the 14 bolt Swap.
**New Zinc Plating to resist corrosion and improve sensor reading**
|
Features include:
|
14 Bolt Axle with Factory Drum Brakes
BB1420: Kit BB1410 with 52 Tooth tone rings
BB1421: Kit BB1410 with 60 Tooth tone rings
This kit has 2 mounting positions per side for Factory JK Rear ABS Sensors. One from each side will connect to the rear plugs and the other 2 need to be spliced into the front plugs. If using any axle than the 2005+ Superduty, this is the best option.
If using 2005 - 2013 Superduty Front Dana 60 Axle only 2 Rear Sensors can be installed and the front will use the Dodge ABS Sensors** and the 60 Tooth Tone Rings
**Dodge ABS Sensors – Chrysler P/N 5179958AB, Dorman P/N 970-052, or Airtec P/N 5S8491**

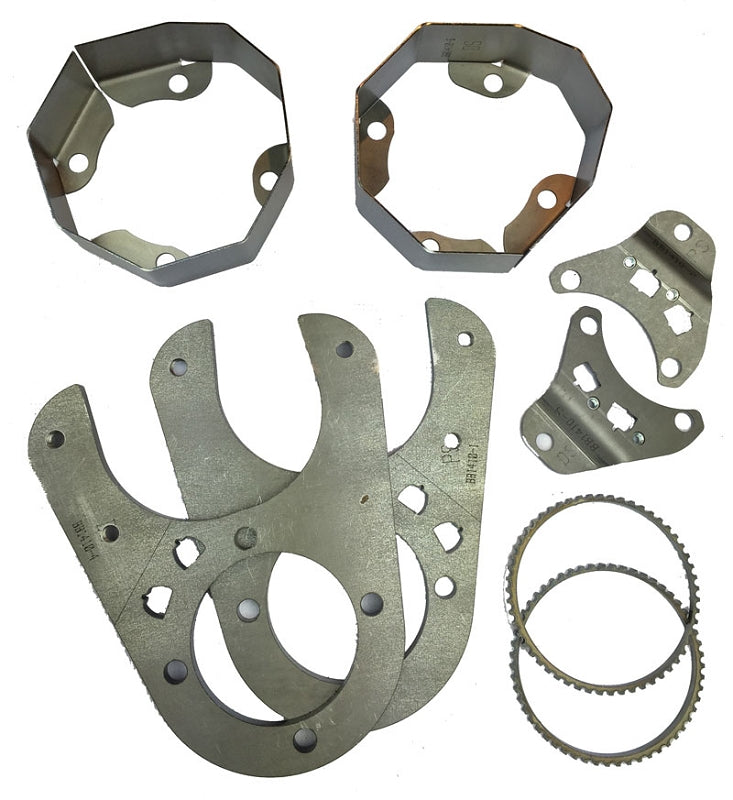

Individual parts that are in this kit and available separately:

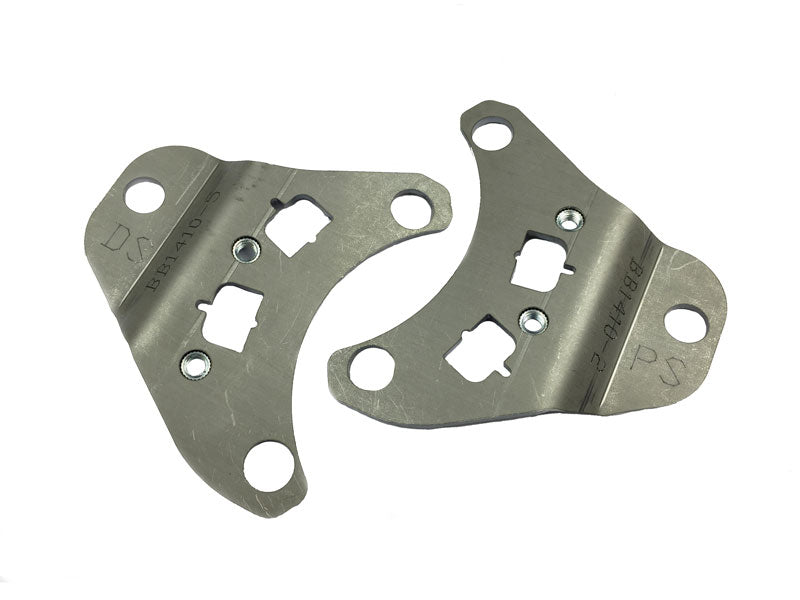

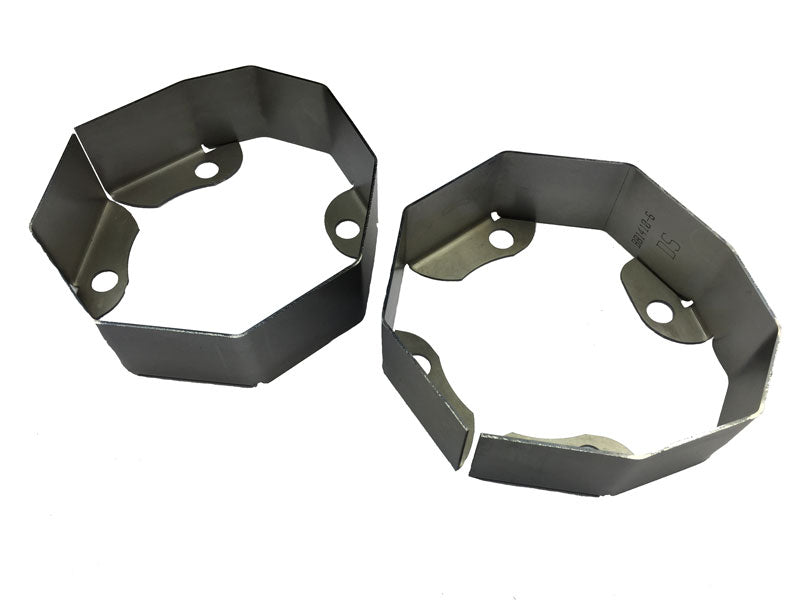

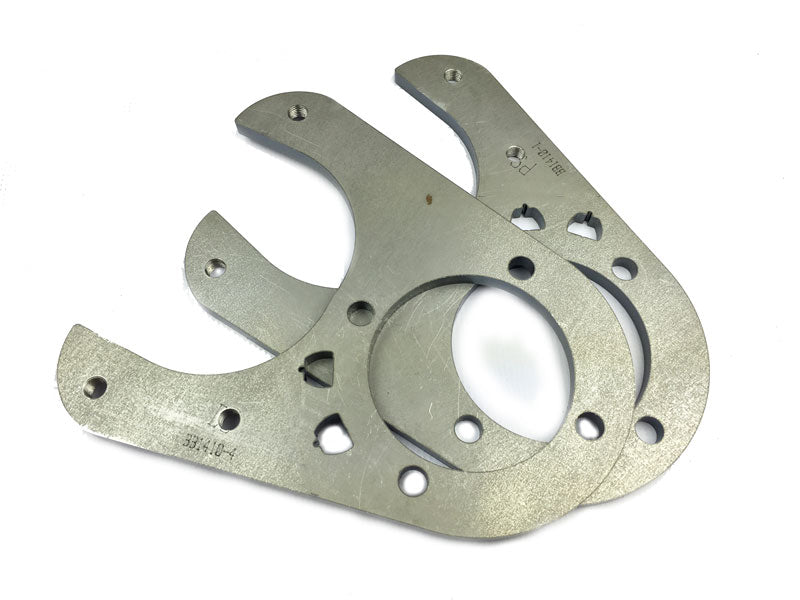

BB1410: Brake brackets and Dust shield
BB1401: 52 Tooth tone ring 14 bolt
BB1403: 60 Tooth tone ring 14 bolt
Additional items required and not included with Kit:
**Please note this converts to a Top Hat Style Rotor**
Calipers (Choose one of the items listed below)
-Raybestos RC4072 & RC4071
-Napa N4674 & N4673
-Napa N4597 & N4596
Wheel Studs
-Dorman P/N 610-333 – 16 of these are needed
(10.9/333 14 x 1.5mm 90.5 mm long)
Rotors (Choose one of the items listed below with a Quantity of 2)
-Network P/N P56828
-Raybestos P/N 55055
-Bendix P/N PRT5260
-58828
