JK2TJ FRONT AXLE SWAP KIT with TRUSS
All the brackets necessary for the JK Dana 44 front axle
swap into a Jeep TJ Wrangler ('97-'06), LJ Wrangler ('03-'06),
XJ Cherokee ('84-01'), MJ Comanche ('85-'92) and ZJ Grand Cherokee ('93-'98)

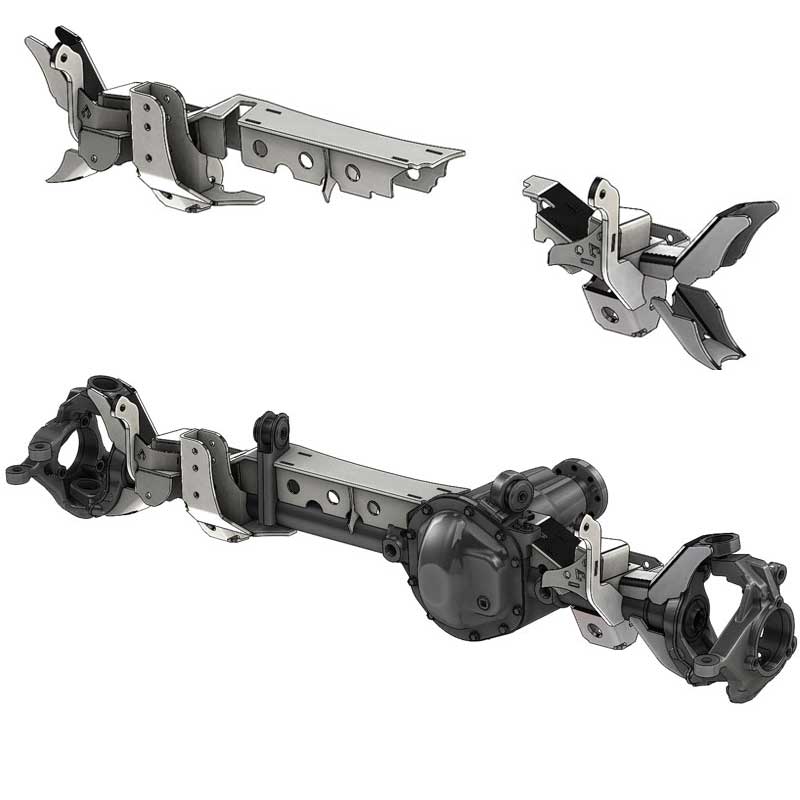

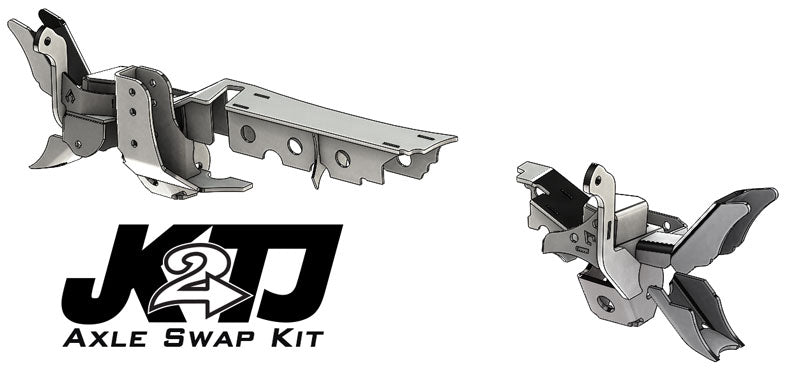

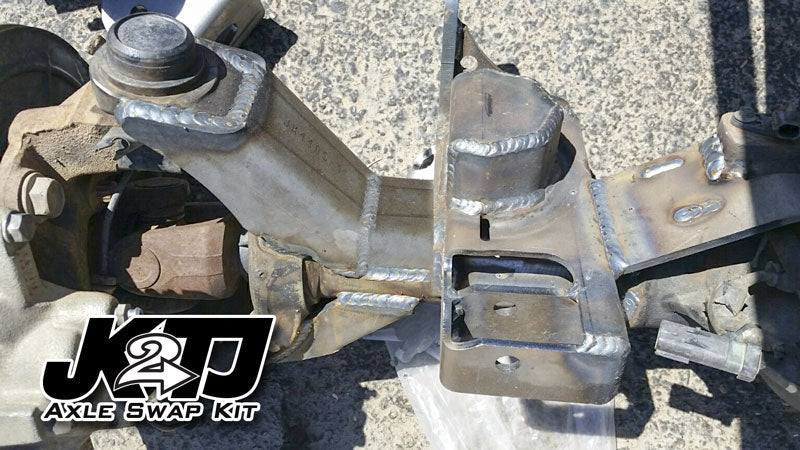

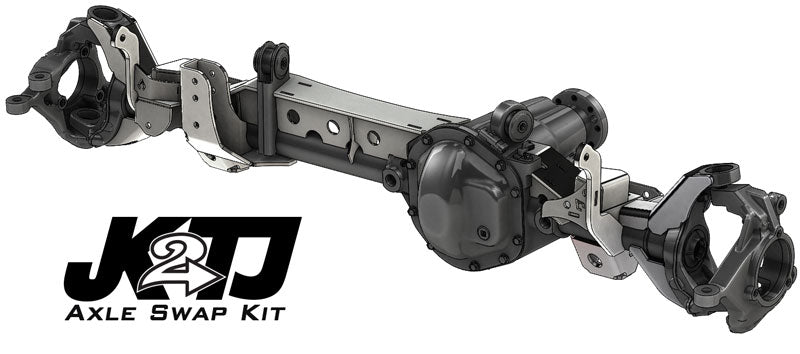

Artec Industries is excited to announce the JK2TJ Front Axle Swap Kit. This heavy duty truss and bracket system is designed to take serious abuse and reinforce your entire axle while also providing the factory link, anti-sway bar, tracbar and shock locations. The 1/4" thick truss top incorporates a unique design to strengthen both the axle and incorporate the link brackets for ease of installation and added strength. By incorporating the link mounts into the truss, hours of work and trial and error can be avoided when compared to other bracket systems. Simply place the truss on the axle and all the other brackets fit into place exactly where they need to be.
The JK front D44â„¢ features: A high pinion differential, larger diameter ring gear than Dana 30â„¢, larger disc brakes, and a wider WMS for lowered Center-of-Gravity.
NOTE: The JK D44 axle has a different 5 lug bolt pattern than the factory axle so new wheels will be needed. It is also a wider axle so prepare for the WMS to be wider than your factory axles. Only to be used with our JK2TJ Rear Axle Swap Kit or equivalent.

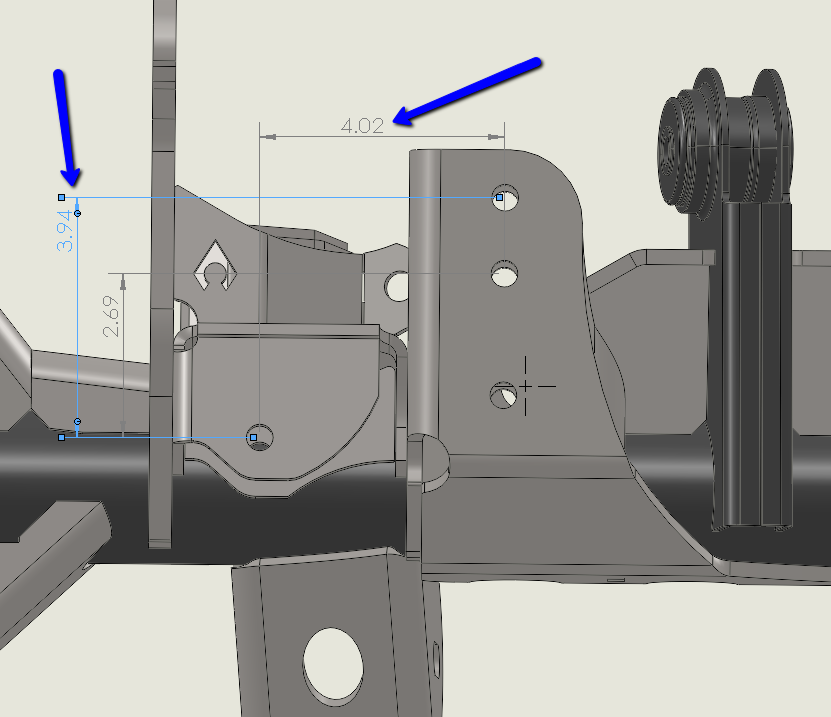

NOTE: A new or modified tracbar will be needed as steering geometry and tracbar bracket location has changed. You cannot use a JK or TJ tracbar as they are offered, even aftermarket adjustable. The new tracbar will be shorter than factory style. This change is required to have proper suspension and steering geometry and eliminate bump steer. See the diagram below to note the location change for the new tracbar hole mount.
NOTE: This kit is a collection of different individual parts sold together. Not all pieces may be used and some slight modifications may be necessary depending on your vehicle.
| Features include:
|
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
* Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required.
** Some changes to factory positions have been altered. The Anti-sway bar bracket hole is 2.75" higher than factory hole to allow for clearance with steering. The UCA mounts on the JK axle are 5/8" wider on each side than the TJ mounts so a flexible joint on the UCA's is recommended.
*** In rare and extreme cases, the truss may come into contact with oil pan. Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bumpstop extensions to prevent damage to oil pan.
