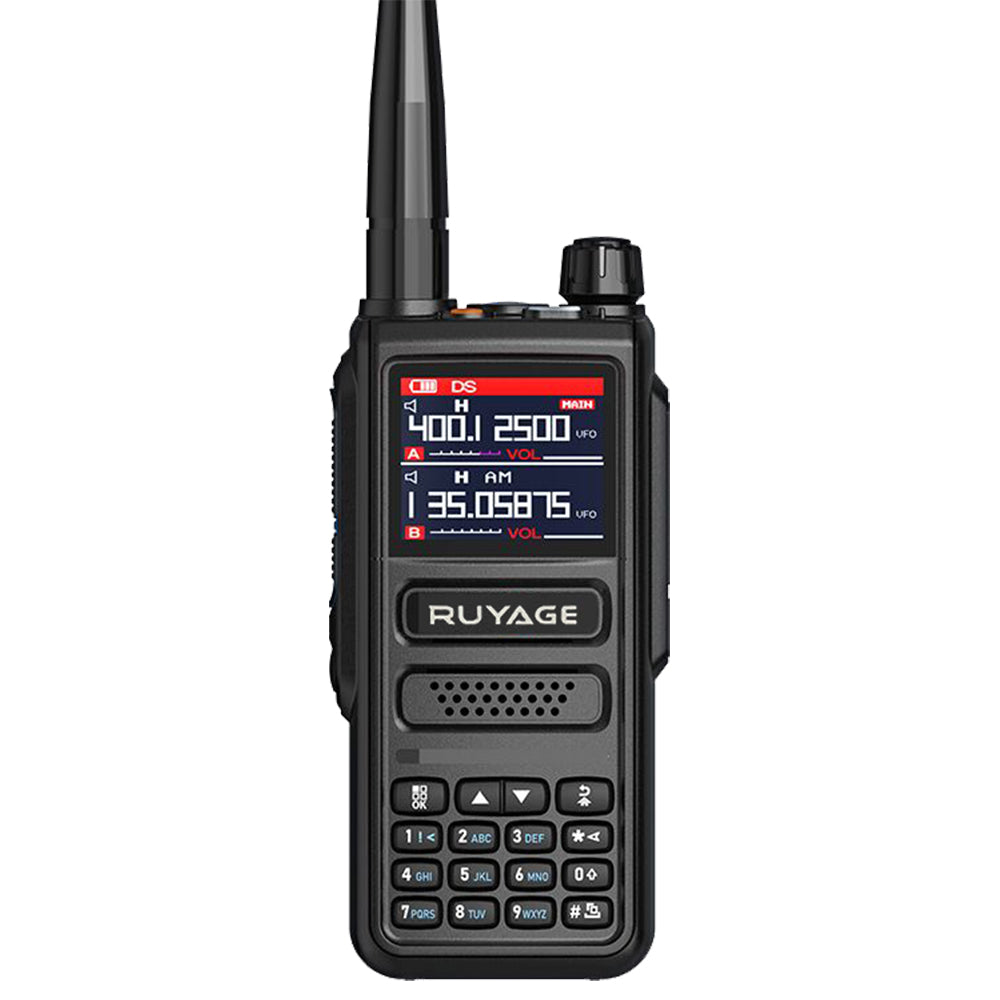

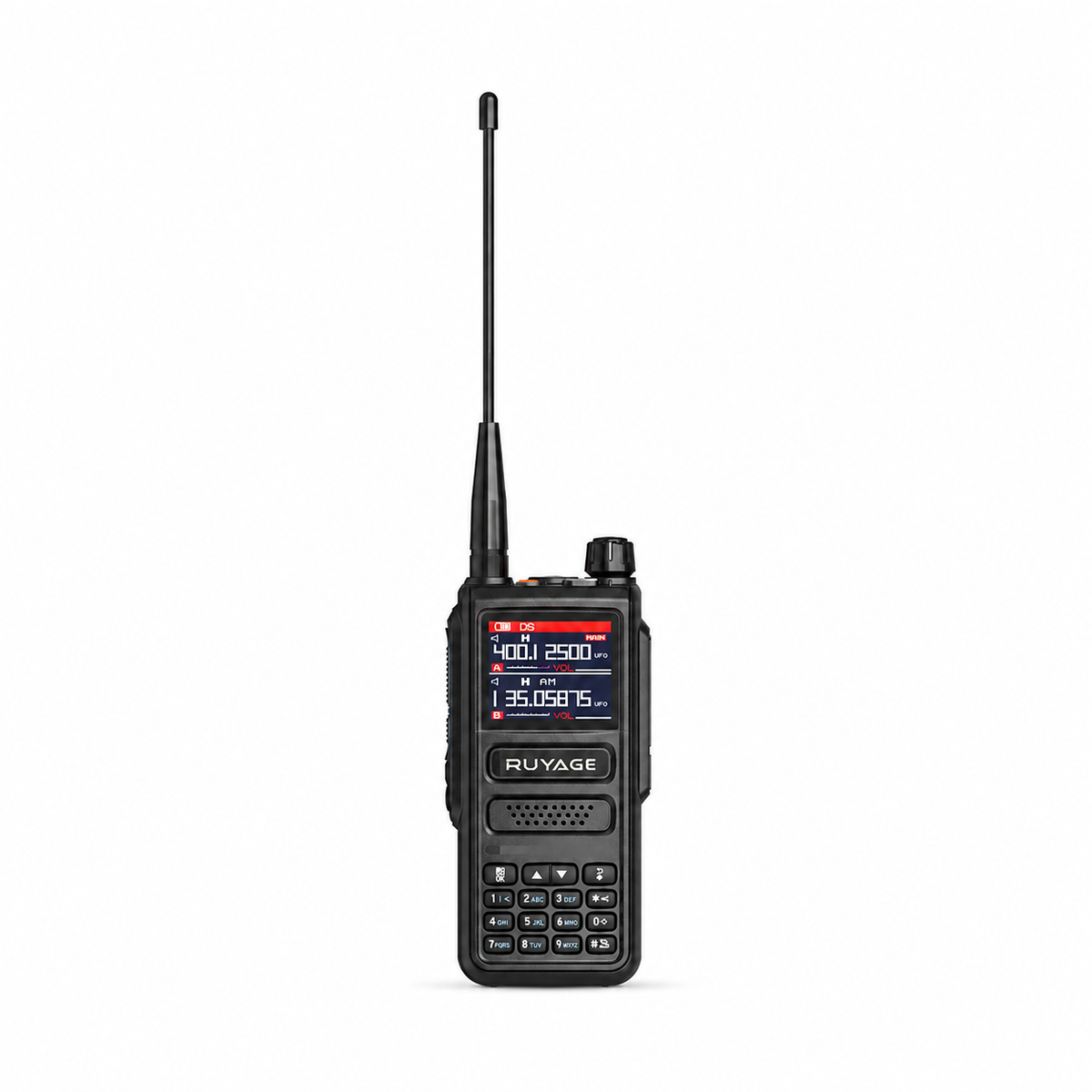

RUYAGE UV98 10W 6-Band VHF/UHF Analog Walkie Talkie

The RUYAGE UV98 is a high-power 6-band VHF/UHF analog walkie talkie designed for radio enthusiasts, outdoor users and compatible professional communication systems.

Featuring a manufacturer-rated output of up to 10W on supported transmit bands, 200 programmable channel memories, a 2600mAh rechargeable battery, NOAA Weather Radio reception, AM airband reception, frequency scanning, one-key frequency copy and selectable power levels, the UV98 combines versatile radio functions in a portable handheld design.

The UV98 communicates directly with compatible analog radios and does not require cellular service, WiFi, a SIM card, Zello or a PoC service plan. Available frequency coverage and transmit capability depend on the regional version, firmware, programming and applicable radio regulations.

---

Key Features

Up to 10W Rated Output

The UV98 provides a manufacturer-rated RF output of up to 10W on supported and properly configured transmit bands.

• Up to 10W rated RF output
• High, medium and low power settings
• Direct radio-to-radio analog communication
• No cellular network required

Actual RF output may vary according to frequency, selected power level, battery condition, antenna, equipment calibration and regional configuration.

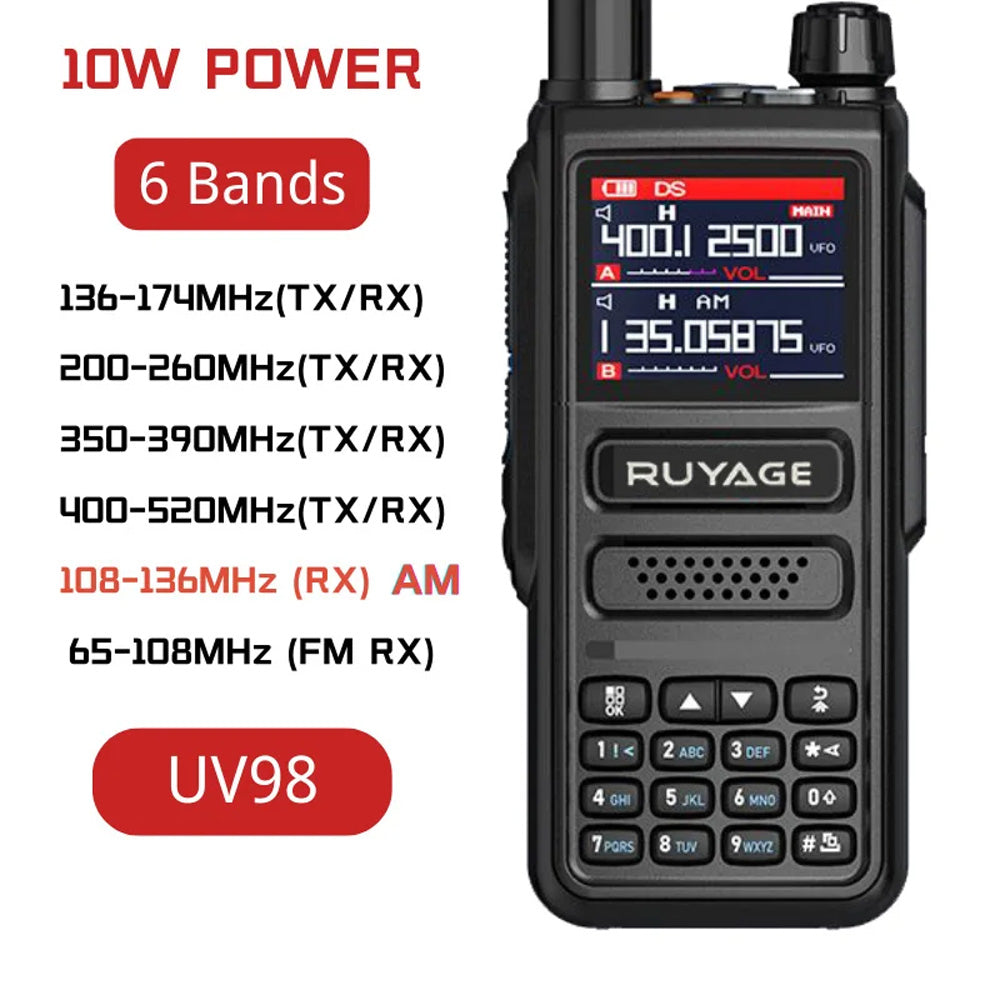

6-Band Multi-Frequency Coverage

The UV98 provides wide six-band frequency coverage, including configurable VHF/UHF analog operation and additional receiving capabilities depending on the product version.

• Six-band multi-frequency coverage
• VHF/UHF analog operation on supported bands
• Flexible frequency and channel management
• Suitable for experienced radio users

Important: Six-band coverage does not mean that every covered frequency can be used for transmission. Some frequencies may be receive-only, restricted or unavailable depending on the regional version, firmware, equipment authorization and programming.

High, Medium and Low Power Selection

Selectable output levels allow users to adjust radio performance according to the communication environment.

• High power for supported demanding applications
• Medium power for balanced performance
• Low power to help reduce battery consumption
• Flexible operation for different communication distances

Higher transmit power does not guarantee a specific communication distance. Range is also affected by terrain, buildings, antenna position, frequency, interference and weather.

Direct Long-Range Communication Without Cellular Service

Unlike 4G LTE PoC and Zello radios, the UV98 communicates directly with compatible analog radios. It can be used without cellular service or WiFi when programmed to authorized frequencies.

Long-range performance is possible under favorable open and unobstructed conditions, but actual range may be significantly shorter in cities, buildings, forests or hilly terrain. No fixed distance can be guaranteed in every environment.

NOAA Weather Radio Reception

The built-in NOAA Weather Radio receiver allows users within supported United States coverage areas to monitor available weather broadcasts and emergency information.

• Receives supported NOAA Weather Radio channels
• Useful for camping and emergency preparedness
• No cellular data required for reception
• Reception depends on terrain, location and station coverage

NOAA Weather Radio is primarily a United States service. Reception is not guaranteed in the United Kingdom or other countries. Unless specifically confirmed in the manual, this feature should be described as a receiver rather than an automatic NOAA alert system.

AM Airband Receive-Only Function

The UV98 supports AM aviation-band reception, expanding its monitoring capabilities for radio enthusiasts where reception is legally permitted.

• AM airband reception
• Receive-only use on aviation frequencies
• Useful for radio and aviation enthusiasts
• Separate from FM broadcast reception

Never transmit on aviation frequencies. Aviation communications are safety-critical and require specifically authorized equipment, frequencies and licensing.

FM Broadcast Radio

The integrated FM broadcast receiver allows users to listen to supported local radio stations when available.

FM broadcast radio and AM aviation-band reception are separate functions and should not be described together as “AM/FM aviation communication.”

200 Programmable Channel Memories

Store and organize up to 200 programmable channel memories for different frequencies, teams and operating configurations.

• 200 channel memory capacity
• Fast access to saved channels
• One-key call channel
• Flexible team and group organization

The channel number describes memory capacity and does not mean that 200 frequencies are automatically licensed or authorized for transmission.

One-Key Frequency Copy and Frequency Meter

The UV98 includes tools designed to help identify and configure compatible nearby analog radio signals.

• Fast single-channel frequency copy
• Frequency meter function
• Wireless radio replication
• Faster compatible radio setup

Frequency detection and copying depend on signal strength, modulation, signaling and radio compatibility. Copying a frequency does not authorize its use.

Cross-Band Communication Function

The listed cross-band function provides additional flexibility when using compatible and properly configured VHF/UHF analog channels.

Exact operation depends on radio programming and firmware. This function should not be described as an automatic cross-band repeater unless that capability is specifically confirmed in the official product manual.

CTCSS, DCS and DTMF Functions

The UV98 supports common analog signaling functions for use with compatible radio systems.

• CTCSS signaling
• DCS signaling
• DTMF signaling
• Wide and narrow bandwidth selection
• One-key call channel

CTCSS and DCS help filter unwanted channel audio but do not encrypt conversations or make analog communication private.

Multiple Scanning Functions

The UV98 includes scanning and monitoring tools for locating active compatible signals and managing saved channels.

• Frequency scanning
• Multi-scan modes
• Channel monitoring
• Frequency meter
• Wide and narrow bandwidth selection

2600mAh Rechargeable Battery

The UV98 includes a 2600mAh rechargeable lithium-ion battery designed for extended daily communication.

• 2600mAh rechargeable battery
• High, medium and low power selection
• USB Type-C charging support
• Compatible charging-base support

Actual operating time varies according to transmit power, signal conditions, scanning, display use, flashlight use, volume, temperature and time spent transmitting.

Built-In Flashlight

The integrated flashlight provides convenient supplemental lighting for camping, outdoor activities, nighttime operation and emergency preparedness.

The flashlight is a convenience feature and should not replace certified emergency or safety lighting.

Local Emergency Alert

The emergency alert function provides an additional local radio alarm option for outdoor activities and backup communication.

This function does not contact emergency services, share a GPS location or replace a satellite messenger, personal locator beacon or mobile emergency service.

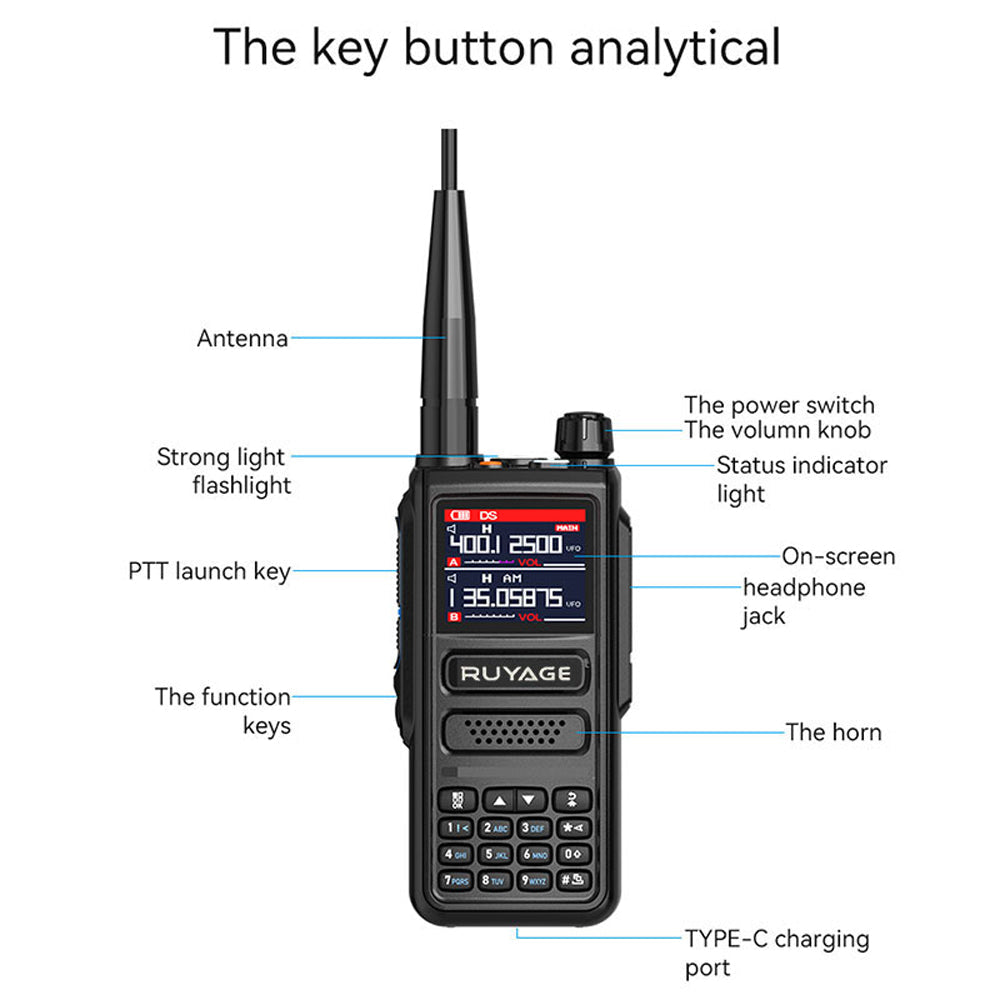

Portable Handheld Design

The removable antenna, belt clip and lanyard make the UV98 convenient to carry during outdoor activities and daily radio operation.

This model is not waterproof and has no published IP rating. Keep the radio dry and protect it from rain, immersion and excessive moisture.

---

RUYAGE UV98 Specifications

---

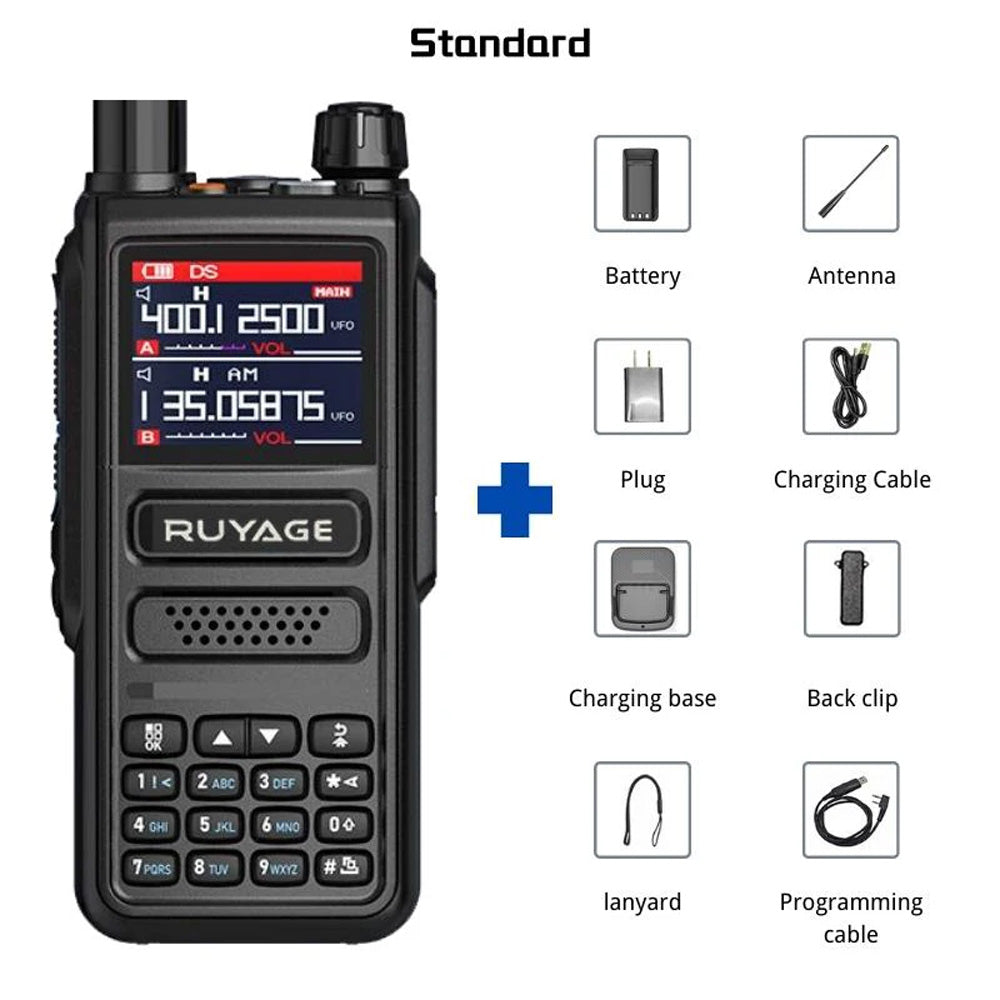

Package Includes

• 1 × RUYAGE UV98 10W Analog Walkie Talkie
• 1 × Antenna
• 1 × 2600mAh Rechargeable Battery
• 1 × US Charger
• 1 × Belt Clip
• 1 × Lanyard
• 1 × User Manual
• 1 × Programming Cable

Customers outside the United States should confirm charger plug compatibility before ordering. Package contents may vary by selected product option.

---

Ideal Applications

• Licensed amateur radio operation where permitted
• Camping, hiking and outdoor activities
• Radio monitoring and enthusiast use
• Field and property communication
• Emergency preparedness and backup communication
• Compatible security, event and team radio systems

---

Frequently Asked Questions

Is the UV98 a 10W walkie talkie?

The UV98 has a manufacturer-rated output of up to 10W on supported transmit bands. Actual measured RF output may vary according to frequency, selected power level, battery, antenna, calibration and regional configuration.

Can the UV98 transmit on all six frequency bands?

Not necessarily. Six-band describes the radio's multi-frequency coverage. Actual receiving and transmitting capability depends on the band, regional version, firmware and programmed configuration. Some covered bands may be receive-only.

Can the UV98 transmit on aviation or NOAA frequencies?

No. Airband and NOAA features should be treated as receive-only. Never transmit on aviation, NOAA weather or other restricted frequencies.

Will NOAA Weather Radio work outside the United States?

NOAA Weather Radio is primarily a United States broadcast service. Reception depends on being within range of a compatible transmitter and is not guaranteed in the United Kingdom or other countries.

Does the UV98 require cellular service or WiFi?

No. The UV98 is a direct analog two-way radio and does not require cellular data, WiFi, a SIM card, Zello or a PoC service plan.

Can the UV98 communicate with other analog radios?

It may communicate with compatible analog radios when both devices use the same authorized frequency, channel bandwidth and signaling settings.

How far can the UV98 communicate?

Range depends on frequency, power level, antenna, terrain, buildings, interference and surrounding conditions. A higher rated output may improve performance in some environments but does not guarantee a fixed communication distance.

Does the UV98 work as a cross-band repeater?

Do not assume that it functions as an automatic cross-band repeater. The listed cross-band communication function depends on programming and firmware and should be confirmed in the official product manual.

Is the UV98 waterproof?

No. The UV98 has no published IP waterproof rating. Keep the radio dry and do not expose it to rain or water immersion.

Does the UV98 require a radio licence?

Licensing requirements depend on the country, programmed frequency, transmit power, equipment authorization and intended use. The UV98 should not be advertised as universally licence-free.

---

Important Frequency and Licensing Notice

The UV98 is a programmable high-power multi-band radio. Hardware frequency coverage does not authorize transmission on every receivable or programmable frequency.

Users are responsible for lawful programming, licensing and operation. Do not transmit on aviation, NOAA weather, public-safety, emergency-service, maritime, government or other restricted frequencies.

Reception and monitoring laws may also vary by country. Always comply with the radio regulations applicable in your location.

---
