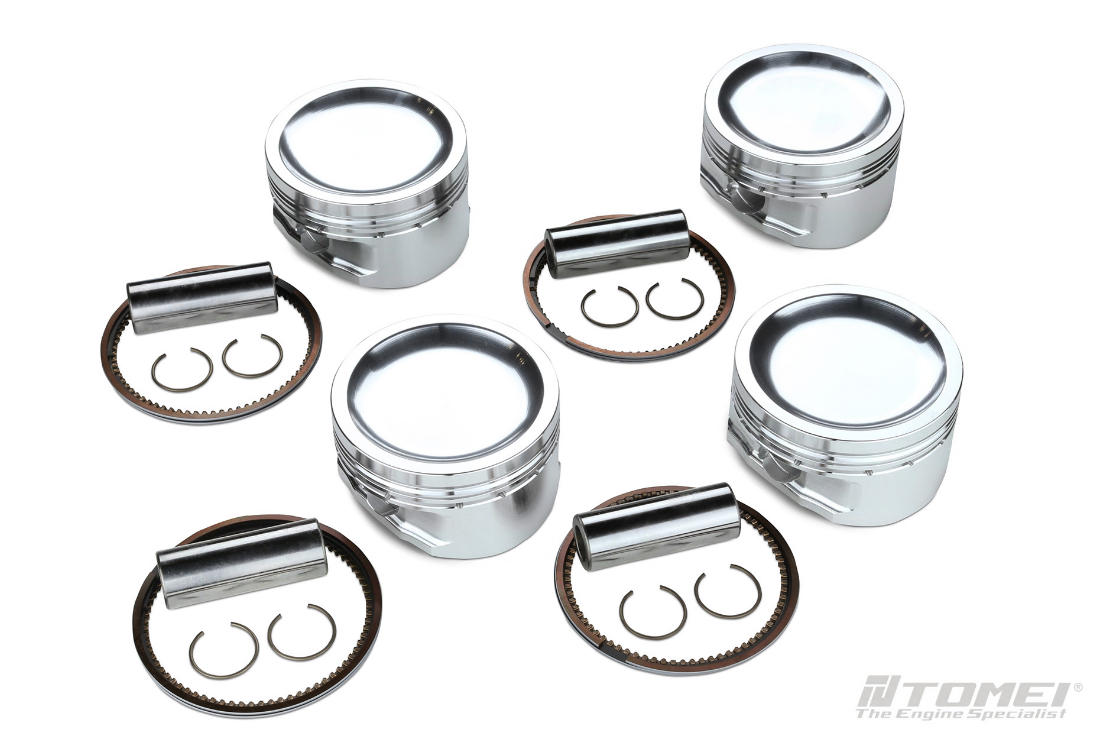

Forged Piston Kit
| Category | Engine | Parts Number |
| 87.00mm CH29.50 (2.2) | SR20 | TA202A-NS08A |
| SR20DET 87.00mm CH29.50 (2.2) CP | SR20 | TA202A-NS08AP |
Description
| TA202A-NS08A | TA202A-NS08AP | |
| BORE (mm) | 87.00 (OEM +1.0) | 87.00 (OEM +1.0) |
| PIN DIA. (mm) | 22 | 22 |
| PIN LENGTH (mm) | 60 | 60 |
| CLIP INNNER DIA. | 22 | 22 |
| VALVE RECESS | WITHOUT | WITHOUT |
| COMP.HEIGHT (mm) | 29.50 (OEM -2.5) | 29.50 (OEM -2.5) |
| PISTON DOME VOL. (cc) | -18 | -17.8 |
| PISTON WEIGHT (g) | 317 | 310 |
| PIN WEIGHT (g) | 121.5 | 125.1 |
| TOTAL WEIGHT (g) | 438.5 | 435.1 |
| TOP RING (mm) | 1.20 x 3.05 | 1.20 x 2.90 |
| SECOND RING (mm) | 1.20 x 3.90 | 1.20 x 3.00 |
| OIL RING (mm) | 2.50 x 2.95 | 2.50 x 2.60 |
| MATERIAL | A4032 |
A2618 |
