Current Lead Time: 4–6 weeks
VF-117 Front Bumper
The VF-117 was developed with a balance of styling and trail focused performance. Every line and component was designed with both form and function in mind, resulting in a bumper that integrates cleanly with the vehicle while delivering the strength and capability expected for serious off road use.

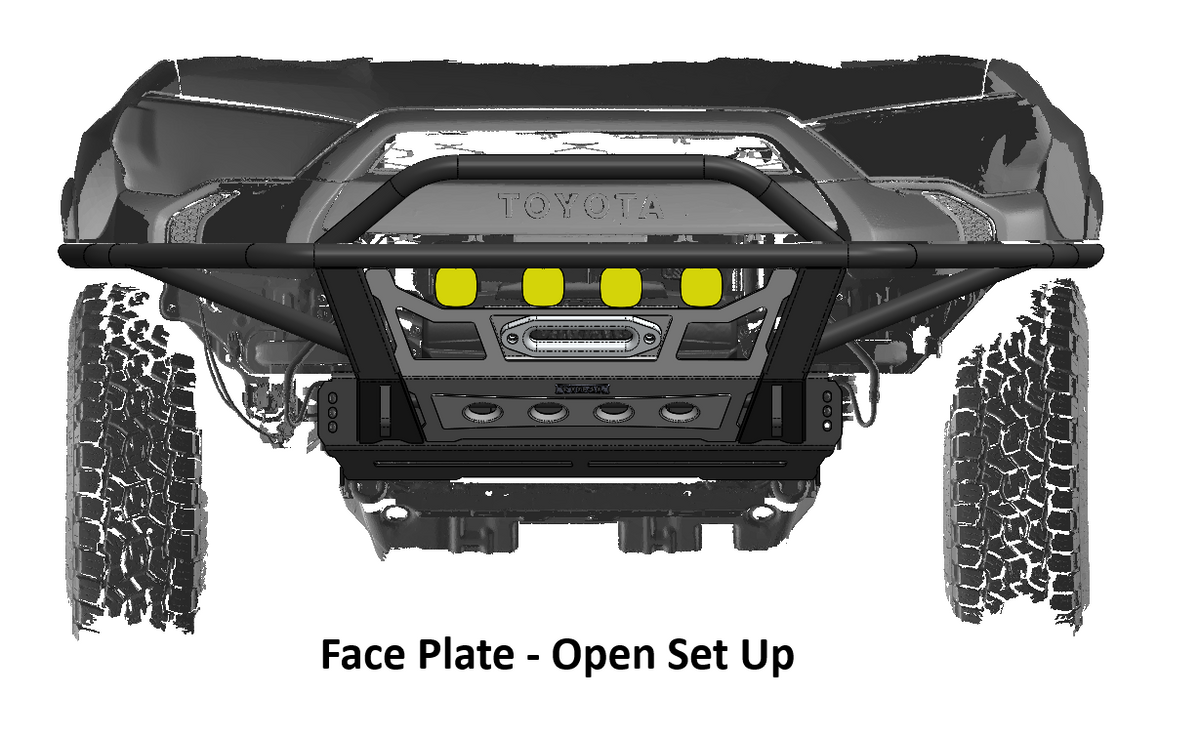

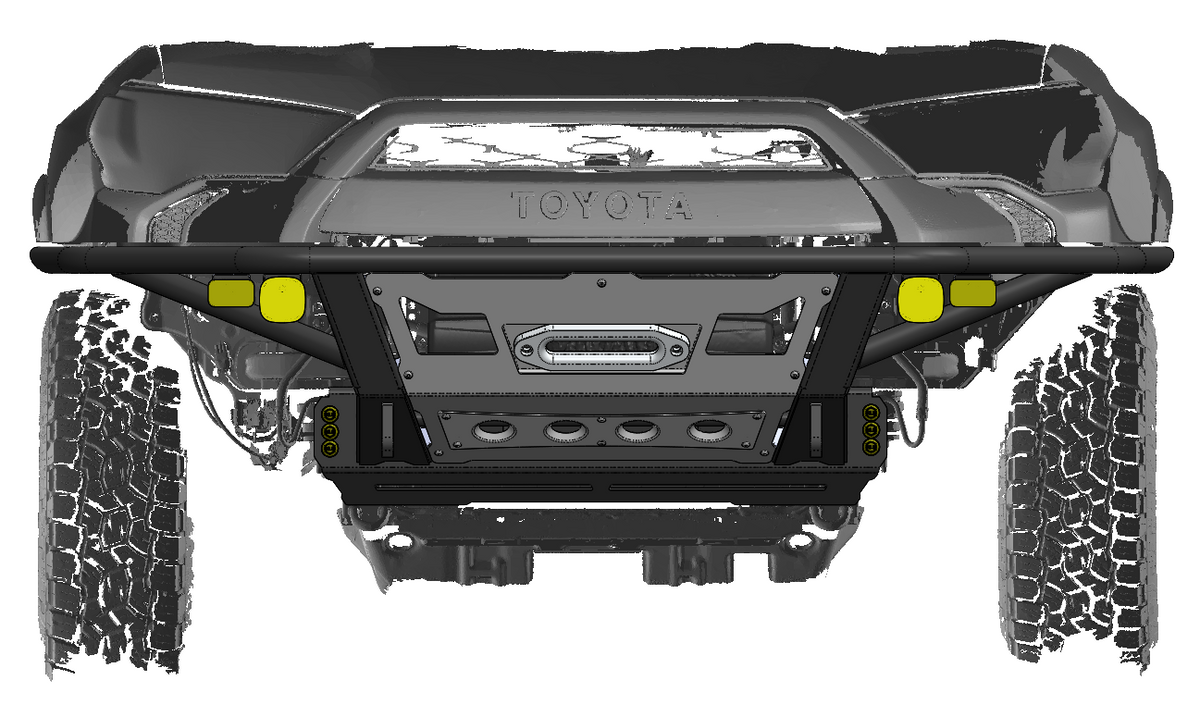

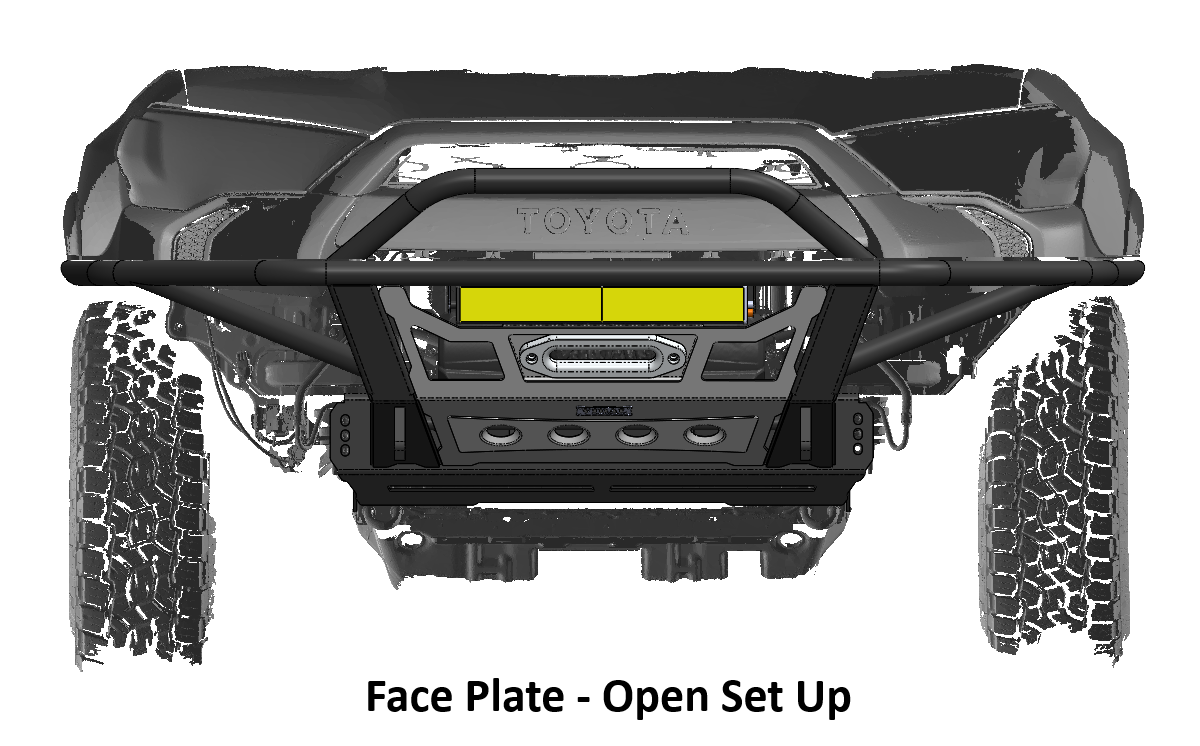

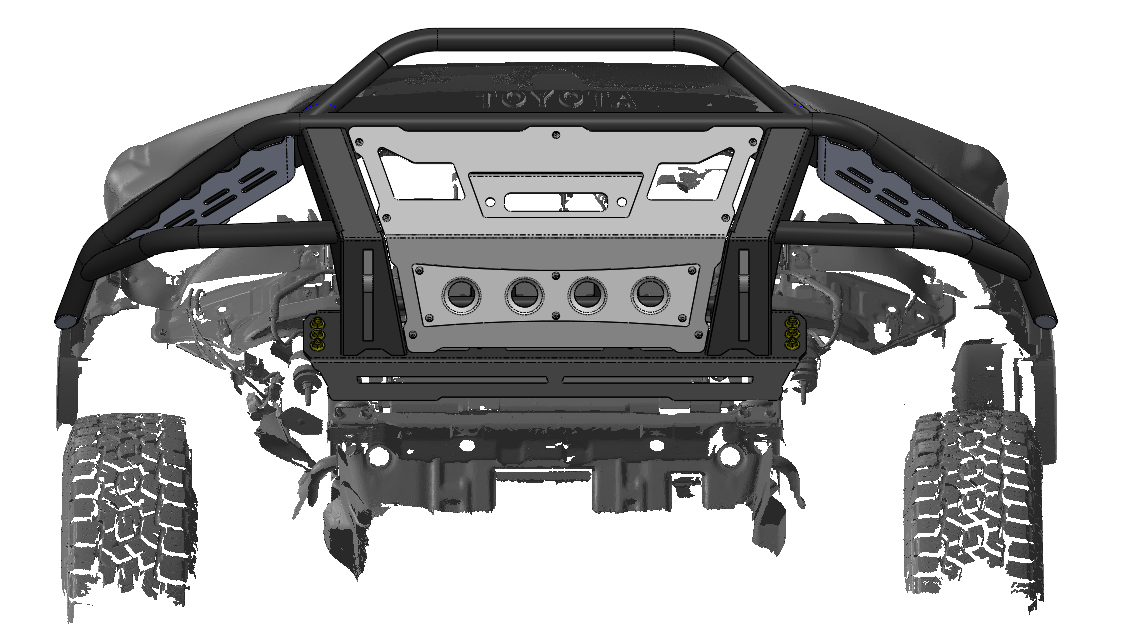

At the center of the design is a modular front face plate system. The interchangeable plate allows the bumper to run in a fully enclosed configuration for a streamlined look, or in an open setup to accommodate auxiliary light pods or a medium sized light bar. This flexibility makes it easy to tailor the bumper to your build while maintaining the bumper’s overall design language.
Off-road performance was a key focus throughout development. The VF-117 features improved approach angles to help clear obstacles and navigate technical terrain with confidence. Face plate options are available in 1/8" aluminum for reduced weight or 3/16" steel for additional rigidity, allowing you to choose the setup that best suits your vehicle and driving style.
Recovery points are positioned near the primary mounting structure and reinforced with an integrated support tube that distributes load forces directly through the bumper’s main structure. This design ensures recovery loads are supported where the bumper is strongest.
To further complement different builds, the VF-117 is available with Open wings or Pre-Runner style wings, giving you the flexibility to match both the look and intended use of your vehicle.
Installation Notes:
Vehicles equipped with TSS (Toyota Safety Sense) sensors or the front camera will require relocation to maintain proper functionality.
For vehicles with a winch, the power steering line may need to be adjusted or relocated to allow adequate clearance.
OEM bumper will need to be cut and trimmed for proper fitment of the VF-117 front bumper.
______________________________________________________________________________________________
Key Features
Fully Bolt-On Fitment
Designed for a precise installation with no cutting or welding required to the frame.
Precision Fabrication
Laser-cut and CNC formed components ensure consistent fitment and clean lines throughout the bumper.
Modular Face Plate System
Run an enclosed face plate for a streamlined appearance or switch to an open configuration for auxiliary lighting.
Integrated Lighting Mounts
Built-in brackets provide mounting points for auxiliary light pods.
Serviceable Winch Access
A removable face plate cover allows quick and easy access to the winch.
Material Specifications
3/16" HRP&O steel face plate or optional 1/8" aluminum face plate
1/4" HRP&O steel main mounting bracket
1/4" gusset supports beneath the winch mount
3/4" clevis shackle mounts for dependable recovery points
3/16" face plate support structure
1/8" Aluminum Winch Cover Plate with Dimple Holes
Main top tube and wings constructed from DOM 1.75" x .120 wall tubing
Wings available in Open or Pre-Runner style lower tube configurations
Weight: 100-110 lbs. depending on face plate option.
Designed for the 5th Gen 4Runner

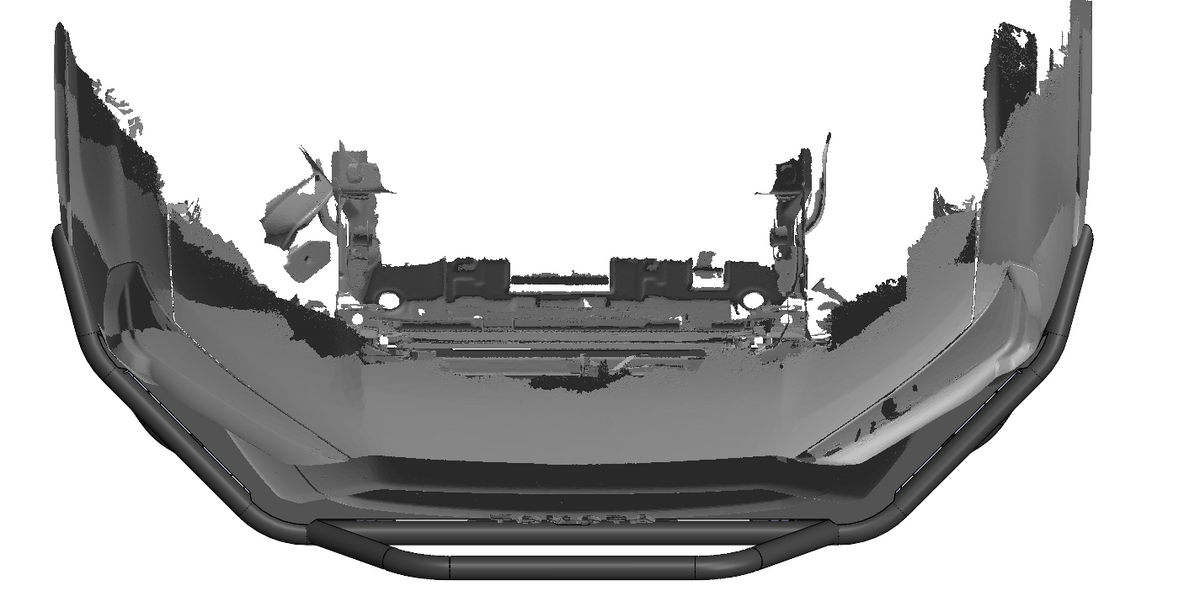

The VF-117 was specifically engineered for the Toyota 4Runner Fifth Generation platform. The design follows the body lines of the vehicle while maximizing clearance and maintaining a tight, integrated fit. Every mounting point and structural component was developed with the platform in mind to ensure proper fitment, strength, and long term durability both on and off the trail.
Built in the USA
Each VF-117 bumper is built in house by Vidal Metal Worx. From laser cut components to final welding and finishing, every step of the process is handled with careful attention to detail to ensure consistency and reliability. The result is a bumper designed to stand up to real world use while maintaining the fit and finish expected from a purpose built off road product.
Processing Time
Orders are processed in the order they are received. Lead times are estimates and may vary depending on workload. Delays may occur during high-volume periods, holidays, or due to unforeseen circumstances
*SHIPPING: The VF-117 Front Bumper ships to your designated FedEx Freight terminal for pickup. Please click the link below to locate the FedEx Freight facility nearest you.
https://www.fedexfreight.fedex.com/locations.jsp
